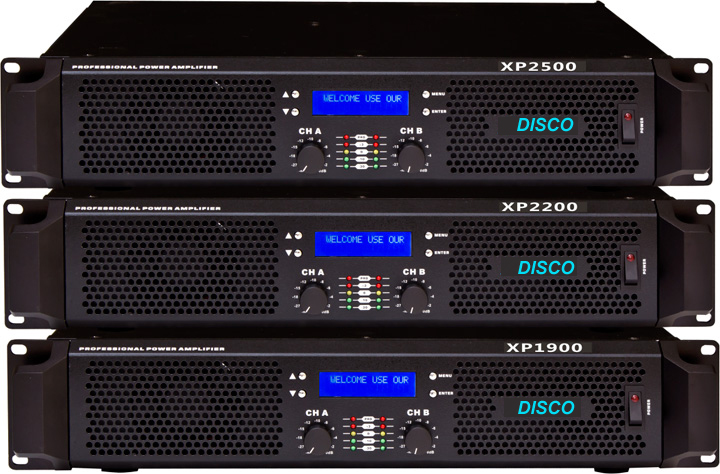

Class H DJ Power Amplifier circuit LCD control XP Series XP400-XP2800
XP Series Features
* XP series power amplifier use efficient class H circuit and Single Chip Microcomputer. LCD display, with perfect function, safe, reliable and easy to operate.
* By use LCD screen and 4 control buttons on the panel can set and indicate multiple working modes.
A. Set to working on STEREO, PARALLEL or BRIDGE output mode.
B. Choose input sensitivity: 0dB, +2.2dB or +5.4dB
C. Choose not cut the low frequence, or 30Hz low cut, 50Hz low cut.
D. Selectable filter, this amplifier can be set to full-range amplifier, treble amplifier or bass amplifier. When the amplifier working as a bass amplifier, you can use the knob on the back panel to adjust the filter crossover point.
E. Can set password.
F. Show the temperature of the internal amplifier.
* 2 row LED indicate the output level and limit, protection status.
* Startup delay, overload protection, short circuit protection, over temperature protection and load protection circuit.
* Has limit circuit, can protect the speaker from damage.
* XP-A series is the simple Version of XP series, base on the XP series, it remove the function A,B,C,D,E,F. Other functions are the same.
FAQ
Q. Can you use our company logo and package type?
A:Yes,We are manufacture ,We provided this service.
Q: I like the design but want to change a little part, is it possible?
A: Yes ,we will try to do it.
Q: I like the product/speaker but i want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, and welcome your good suggestions.
Q: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q: What's your MOQ (Minimum order quantity)?
A: There is no MOQ limited ,you can choose to order 1pc or 1000000pcs.No limit about quality.
Q: Except product value and shipping cost, do I need to pay any other fees in China?
A: No other fees needed in China.
Q. How can I make the payment, what's your payment terms?
A: You can pay by TT,Western Union,or Paypal.
Q. How long is your guarantee period of products?
A: 3 year warrenty, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!
